What are Cathode Bars?
Steel cathode bars are used in the electro-refining of copper, zinc, and other non-ferrous metals. They serve as an electrode in the electrolytic cell and are responsible for collecting the pure metal during the refining process. Cathode bars need to be strong, durable, and corrosion-resistant, which is why high-quality steel is the preferred material for their manufacture.

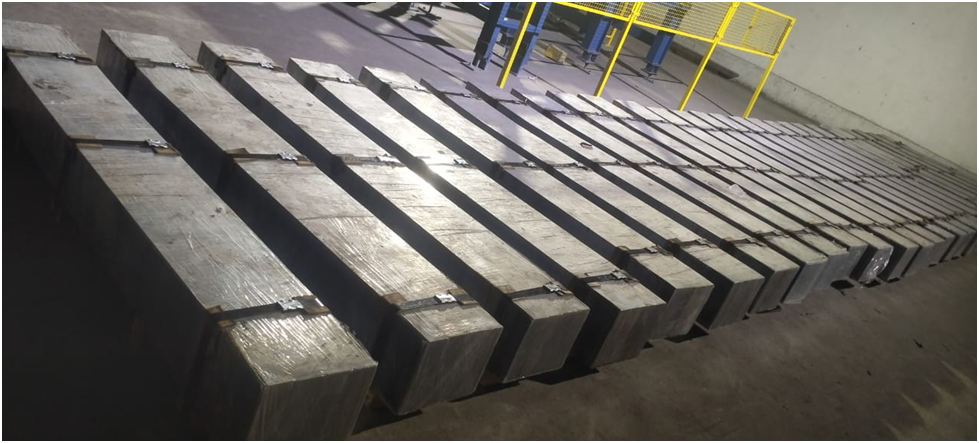

Cathode collector bars with ultralow electrical resistivity
- Grade – SAE 1004, SAE 1006, Ultra low carbon grades
- Type – Wedge shaped Cathode Collector Bar
- Size – As per customer drawing
- Chemical and other typical parameters.
bar type cathode collector hole end toother end
| Parameters | Value |
|---|---|
| Chemical Composition | |
| C % | 0.04 max |
| Si% | 0.30 max |
| Mn % | 0.25 ~ 0.5 |
| S% | 0.050 max |
| P% | 0.045 max |
| Ni% | 0.30 max |
| Cr% | 0.30 max |
| Cu% | 0.30 max |
| N% | 0.0080 max |
| Mechanical Properties | |
| UTS (MPa) : | 270 min |
| Upper Yield Stress (Mpa) : | 115 min |
| Elongation after fracture (%) : | 18 min |
| Tolerance | |
| Length (mm) | -0/+5 |
| Width (mm) | -3 /+ 3 |
| Thickness (mm) : | -3 /+ 3 |
| Bending in X direction | 4.5 in a length of 2mtrs |
| Bending in Y direction | 4.5 in a length of 2mtrs |
| Twisting tolerance (mm) | 5 |
| Radius of Corner (mm) | R 13 -3/ +3 |
| Out of square(mm) | -3, +3 |
